OD 10.8mm High Speed Slip Ring , Super Miniature Slip Ring For High Precision Instruments

Brand Name : Panlink

Model Number : PSR- TC12S

Certification : ISO 9001: 2015, CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Packaging Details : Carton Box, EPE Foam, Wooden Box(For Large Goods)

Price : Negotiable

Name : High Speed Slip Ring

OD : 10.8mm

Length : 23.8mm

Speed : 3000rpm

Housing Material : Stainless Steel

Contact Material : Gold-Gold

Delivery Time : 4 Weeks

Supply Ability : 40 Million a Year

Contact Now

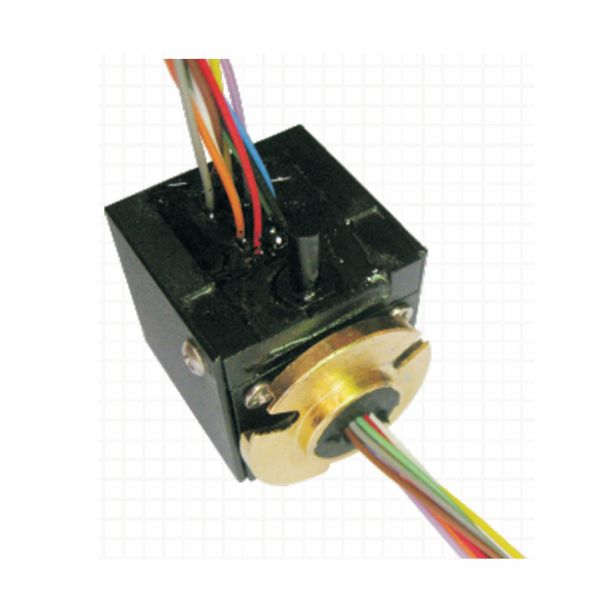

High Speed Super Miniature Slip Ring

A slip ring allows infinite power and signal transmission from a static to a rotational platform, it is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.

This high speed super miniature slip ring PSR- TC12S is specially designed for aerospace and defense testing systems. It allows 12 x 1 Amps circuits and operating speed up to 3000rpm, extremely precise processing and superior concentricity enables it can keep reliable power and signal transmission capability under high-speed operating condition. Designed and manufactured according to military standard, stainless steel housing enclosed for harsh environment operating. Self-contained stainless-steel shaft makes mounting easier and space-saving.

Main Application Advantage
• High speed testing • Low drive torque and low electrical noise
• Aerospace & navigation testing • Easy to replace brush block for extended life
• Tire testing • Maintenance-free operation ( no lubrication required)
• Centrifuges • High quality and reliability
• Thermocouple and strain gauge instruments
• Robotics

Feature
• Speeds up to 20,000rpm
• Speeds up to 12,0000rpm without the need of cooling
• Compatible with various signals and communication protocols
• High performance under adverse operating conditions
• A variety of configurations and mounting optional
• Stainless steel housing and higher protection optional

Model Rings

Current Rating

(amps)

Voltage Rating

(VAC)

Size

(mm)

Speed

(rpm)
OD L
PSR- TC12S 12 1 240 10.8 23.8 1~3,000
Remark: Lifetime can be extended by replacing brush blocks.

Model PSR-TC12S
Voltage Rating 240VAC
Current Rating 1A per circuit
Insulation Resistance 200MΩ @ 500VDC
Electrical Noise 10mΩ @ 6VDC, 50mA, 5rpm
Dielectric Strength 500VAC/ 50Hz/ 60s
Rotating Speed, Max 300rpm
Torque During Rotation, Max 0.01N.m
Life Time, Min 30 million revolutions
Contact Material Gold-Gold
Lead Wires AWG#32 Temperature Wires
Housing Material Stainless steel
Working Temperature -40℃ to +80℃(-40℉ to +176℉)
Storage Temperature -45℃ to +85℃(-49℉ to +185℉)
Shock MIL-STD-810G
Protection Level IP54

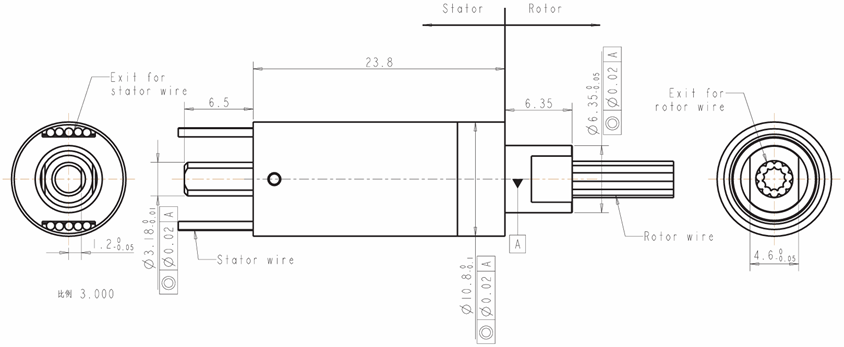

PSR- TC12S
