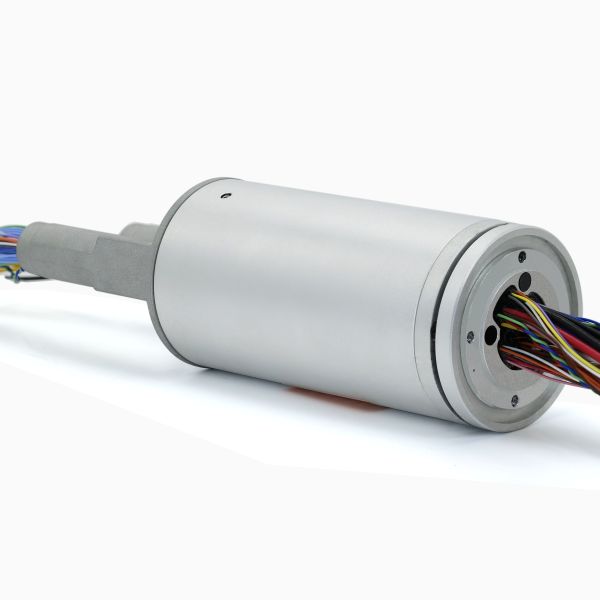

Single Channel SM Fiber Optic Slip Ring , Electrical Slip Ring For Signal / Media Transmission

Product Categories

Shenzhen Panlink Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Single Channel SM Fiber Optic Slip Ring Electrical Slip Ring For Signal Media Transmission
Brand: Panlink
Price: 1 USD

Brand Name : Panlink

Model Number : PSR-T25S-12P60S&MJX

Certification : ISO 9001: 2015, CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Packaging Details : Carton Box, EPE Foam, Wooden Box(For Large Goods)

Price : Negotiable

Delivery Time : 4 Weeks

Supply Ability : 40 Million a Year

Fiber Optic : 1 x SM

Electrical : 2 x Power(20A）+ 10 x Power(8A) + 60 x Signal

Wavelength Range : 1310-1550nm

Protection Level : IP54

Lifetime : 50 million revolutions

Name : Fiber Optic Rotary Joint

Contact Now

Single Channel SM Fiber Optic and Electrical Slip Ring Supporting High-Performance Power, Signal and Media Transmission

72 Electrical + 1 FORJ Integration

Features	Applications
• Fiber Optic: 1 x SM	• Satellite Communication Systems
• Electrical: 2 x Power(20A)+ 10 x Power(8A) + 60 x Signal	• Medical Treatment Equipment
• Wavelength Range: 1310-1550nm	• Radar Antennas
• Protection Level: IP54	• Military Systems
• Lifetime: 50 million revolutions	• HD Network Monitoring Systems
• Connector:	• Air Traffic Control
	• Camera Technology

Single Channel SM Fiber Optic Slip Ring , Electrical Slip Ring For Signal / Media Transmission

Model	PSR-T25S-12P60S&MJX
Circuits	72 + 1 FORJ
Current	2 x Power(20A)+ 10 x Power(8A) + 60 x Signal
Voltage	48VDC
Insulation Resistance	200MΩ@500VDC
Dielectric Strength	500VAC@50Hz
Rotating Speed	300rpm
Torque	Max 0.2N.M
Lifetime	50 million revolutions
Working Temperature	-40℃~+80℃
Storage Temperature	-45℃~+85℃
Humidity	95±3%
Vibration	10~30 Frequency Double Amplitude 0.8mm 30~200HZ Frequency, acceleration 2g two circulationtotal 30 mi
Rush	40g, 11mss, half sine wave, Vertical direction 3 times, Level 3 times
Protection Level	IP54
Contact Material	Precious Metal
Housing Material	Aluminium Alloy
Leadwire	Teflon
Fiber Optic Specification
Wavelength Range	1310-1550nm
Inserlation Loss	＜2dB(Typical: ＋/- 0.15dB
Returen Loss	＞40dB(Typical:45dB, 23℃)
Maximum Speed	2,000rpm
Pressure Compensation	10,000psi
Torque	＜0.1N.M
Pulling Strength	10N
Fiber Type	Single Mode w/3 mm jacke
Weight	50g
Housing Material	Stainless Steel
Working Temperature	-40℃~+65℃
Lifetime	200-400 million revolutions
