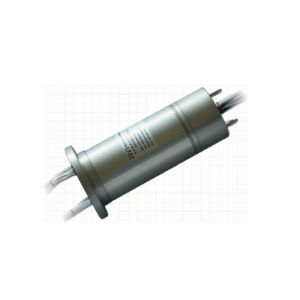

PSR-JA22-38 Miniture Capsule Slip Ring

A miniature slip ring capsule is an electromechanical device that allows the transmission of low power and data from a stationary mechanism to a rotating mechanism. The PSR-JC22-38 provides highly compact packaging to 38 circuits in very small 22mm diameter housing with 37mm overall length, supports various digital video signals and communication protocols, it is the ideal rotary interface for small systems. Robust structure and stainless steel body allow it to well suit for demanding operating environments.

Features

• 38 circuits packaged in a self-contained envelope 22mm diameter and 37mm length

• Rugged stainless steel body for demanding environments

• Up to 250 rpm operation

• Max 10mΩ electrical noise

• Up to 10 Million revolutions lifetime

• Outstanding signal handling capability to transfer the most demanding communication protocols

• Unique plating techniques and superior materials for high performance and reliability

• Precise, tight packaging capabilities for meeting stringent design criteria

• Ideal for demanding space applications

Typical Applications

• Gimballed pitch, roll and yaw axes of inertial navigation systems

• Airborne camera platforms

• Unmanned aerial vehicles (UAV)

• Laboratory equipment

Specification
Circuits	38
Rating Voltage	48 VAC / VDC
Rating Current	2A per circuit
Insulation Resistance	200 MΩ @500 VDC
Dielectric Strength	200 VAC @ 50Hz
Electric Noise	Max 10mΩ
Operating Speed	Max 250 rpm
Torque	Max 80 g.cm
Lifetime	10 million revolutions
Contact Material	Gold-Gold
Housing Material	Aluminium Alloy
Lead Wire	450mm AWG#28 PFA Wires
Working Humidity	-40℃~+80℃
Storage Temperature	-45℃~+85℃
Working Humidity	95±3%(30℃+5℃)
Vibration	MIL-STD-810H
Shock	MIL-STD-810H
Protection Level	IP51

HOW TO ORDER

No	Model No	Rings No	Power(1A)/Signal	Power(5A)	G bits Ethernet	3G-SDI	OD	Length
1	PSR-JA22--38	38	38				22	37
2	PSR-JA22--30S1G		30		1
3	PSR-JA22--35S-SDI		35			1
4	PSR-JA22--27S1G-SDI		27		1	1
5	PSR-JA22--24S1G-2SDI		24		1	2
6	PSR-JA22--2P32S		32	2
7	PSR-JA22--2P21S1G-SDI		21	2	1	1
