Modern Radar Slip Rings IP65 With 1 / 2 Channels Coax / Waveguide Rotary Joint

Brand Name : Panlink

Certification : ISO 9001: 2015, CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Packaging Details : Carton Box, EPE Foam, Wooden Box(For Large Goods)

Price : Negotiable

Name : Radar Slip Rings

Contact Material : Gold to gold

Application : Military equipment

Housing Material : Aluminum alloy

Protection Level : IP65

Signal Transmission : Smooth and reliable

Delivery Time : 4 Weeks

Supply Ability : 40 Million a Year

Contact Now

Radar Slip Ring

Modern radar systems are widely needed in civil, military and defense fields. A high-performance rotary joint/slip ring is essential for the system’s transmission of RF signal, power, data and electrical signals. As a creative and innovative provider of 360° rotating transmission solutions, Panlink provide a variety of integrated solutions of electrical slip ring and coax/ waveguide rotary joint to civil and military radar clients.

Civil use radar slip rings usually require only 3 to 6 circuits to provide power and signals and need be cost-effective. But military use radar slip rings have more complicated requirements. They may need more than 200 circuits for power supply and various signals transmission in limited space, and more importantly, they need meet certain military environmental requirements: temperature, humidity, shock and vibration, thermal shock, altitude, dust/sand, salt fog and spray etc.

Both civil and military use radar electrical slip rings can be combined with single/ dual channels coaxial or waveguide rotary joints or combination of these two types. Cylindrical shape and platter shape with a hollow shaft to suit for vehicle-mounted radar system or radar pedestal available.

Main Application Modern Radar Slip Rings IP65 With 1 / 2 Channels Coax / Waveguide Rotary Joint
• Weather radar and air traffic control radar
• Military vehicle-mounted radar systems
• Marine radar systems
• TV broadcast systems
• Fixed or mobile military radar systems

Feature
• Can integrated with 1 or 2 channels coax/waveguide rotary joint
• Transfer power, data, signal and RF signal through an integrated package
• A variety of existing solutions
• Cylindrical and platter shape optional
• Custom cutting edge military use solutions available

Model Channels Current(amps) Voltage(VAC) Bore(mm) Size(mm) Rpm
Electrical RF 2 10 15 OD L
PSR-T38-6FIN 6 2 6 380 35.5 99 47.8 300
PSR-LT13-6 6 1 6 220 13.5 34.8 26.8 100
PSR-LT70-6 6 1 RF + 1 Waveguide 4 2 380 70 119 37 100
PSR-P82-14 14 14 12 2 220 82 180 13 50
Remark: RF channels are optional, 1 channel RF rotary joint up to 18 GHz. Customized solutions available.

Specification
Voltage Rating 120VAC/ 240VAC/ 380VAC
Current Rating 2A/ 10A/ 15A
Insulation Resistance 500MΩ @ 500VDC
Electrical Noise 20mΩ max
Dielectric Strength 500VAC/ 50Hz/ 60s
Rotating Speed, Max 100rpm/ 250rpm/ 300rpm
Torque During Rotation, Max 0.01N.m
Working Temperature -40℃ to +80℃(-40℉ to +176℉)
Storage Temperature -45℃ to +85℃(-49℉ to +185℉)
Shock MIL-STD-810G
Vibration MIL-STD-810G
Relative Humidity 95%

PSR-T38-6FIN Dimensions

Modern Radar Slip Rings IP65 With 1 / 2 Channels Coax / Waveguide Rotary Joint

PSR-LT13-6 Dimensions

Modern Radar Slip Rings IP65 With 1 / 2 Channels Coax / Waveguide Rotary Joint

PSR-LT70-6 Dimensions

Modern Radar Slip Rings IP65 With 1 / 2 Channels Coax / Waveguide Rotary Joint

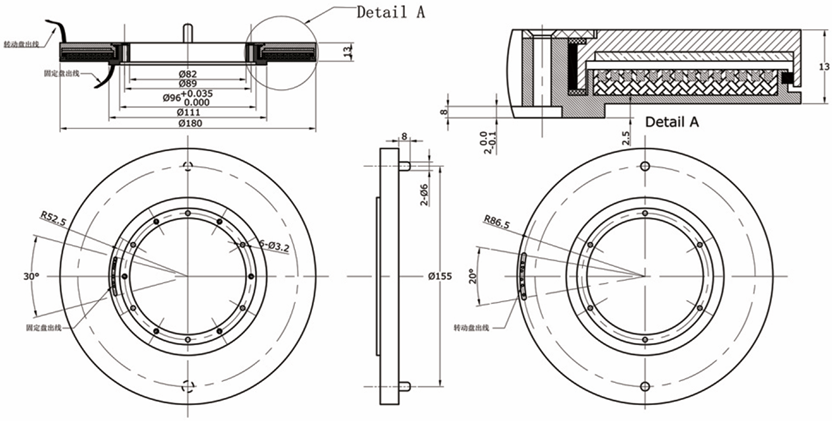

PSR-P82-14 Dimensions

Modern Radar Slip Rings IP65 With 1 / 2 Channels Coax / Waveguide Rotary Joint
